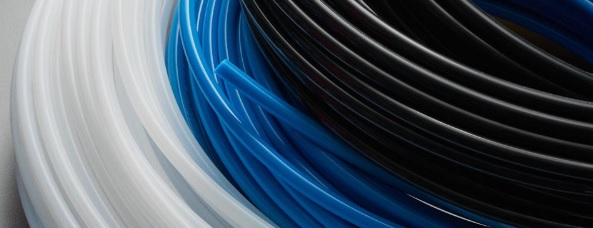

SERIA TUBE POLYMER

Name: TUBE POLYMER
SKU: SERIA

Home

>TUBE POLYMER

Application area
It is used for transporting compressed air, water, food products, etc.
Components and Materials
- Polyamide PA
- Polyurethane PU
- Teflon PTFE
- Polyethylene PE

Pressure

Diameter of the tube, mm		Working pressure, bar at 20°C
Outer	Inner	PU	PA12	PE	PAHIPL	PTFE
4	2	14		22		27
4	2.5	10	31
4	2.7		26			21
6	4	10	27	13	27	20
8	6	7	19	10	19	14
10	8	5.5	15	7	15	12
12	9	7	21	10	19
12	10		12			10
14	10	8
14	11		12
14	12		10
15	12				16
15	12.5		12
16	12	7			21

Temperature
Temperature, °C PU PA12 PAHIPL PTFE SI
min -40 -40 -40 -60 -30
max +60 +100 +100 +205 +200
Category: TUBES AND HOSE

Polyurethane tube is the most widely used in any field of pneumatics. Its popularity is due to its relatively low cost and excellent technical characteristics. To these characteristics, the working pressure can vary from 14 to 7 bar (depending on the diameter), and the temperature ranges from -40 to +60 degrees Celsius. Polyurethane stands out among its competitors due to its softness and elasticity, making it possible to bend without damaging the structure.
